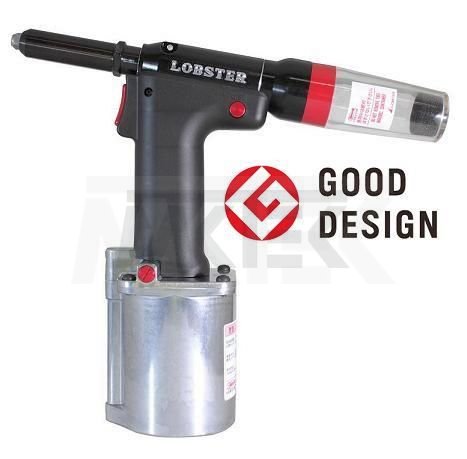

Pneumatická nitovacia pištoľ LOBSTER R1A1
Japonská profesionálna pneumatická nitovacia pištoľ pre priemysel. viac
?Advanced top-class standards
?Achievement by Pneumatic Riveter,
That is made in Japan
The Pneumatic Riveter R1A1-developed using the comprehensive technology of LOBSTER with the high quality and safety that's trusted by professionals around the world.Featuring best-in-class lightweight design. The main body and all associated parts are made in Japan.
It's the beginning of the Pneumatic Riveter legend.
Advancement starts here.
light Lightest-in-class!! Middle-class (M) type
1090g best-in-class lightweight design makes it easy for anyone to use, even for extended periods.
long Compact size and long stroke!!
Equipped with a middle-class stress-free 19-mm long stroke.
Dramatically improved effciency requiring less double-taps than before.
eco R1A1 achieves up to a 55% reduction in air consumption
(compared with company B)
R1A1 parts
| Model name | Model code number (Model number) | Product name | ||
| R1A1 | J1A | LOBSTER Riveter Jaw J1A | ||
| 63209 | Jaw pusher (with P6 O-ring) | |||
| 63218 | Guide tube | |||
| 63222 | Jaw pusher spring | |||
| 63252 | Tank case sponge | |||
| 63253 | Sound-deadening sponge | |||
Note: The conventional jaws (JS,JM,JL,CJM,CJL) can not be used with R1A1.
| Model No. | (Product) weight | size1 | size2 | size3 | size4 | size5 | Use range | Operating air pressure | Usage jaws | Traction power | Retail/User prices |
|---|---|---|---|---|---|---|---|---|---|---|---|
| R1A1 | 1090g | 295mm | 265mm | 106mm | 71.5mm | ?19.5mm | ?2.4?3.2?4.0?4.8mm | 0.49?0.59 | J1A | 9 | open price |
IMPORTANT SAFETY INSTRUCTIONS ?Important Safty Instruction?Be sure to read the instruction Manual and important Usage Advisery carefully and make sure that you understand them thoroughly before using this tool.
?Be sure to use under condition of construction.
?At the time of the attention and the activity in case of application, wear an eye protector.
